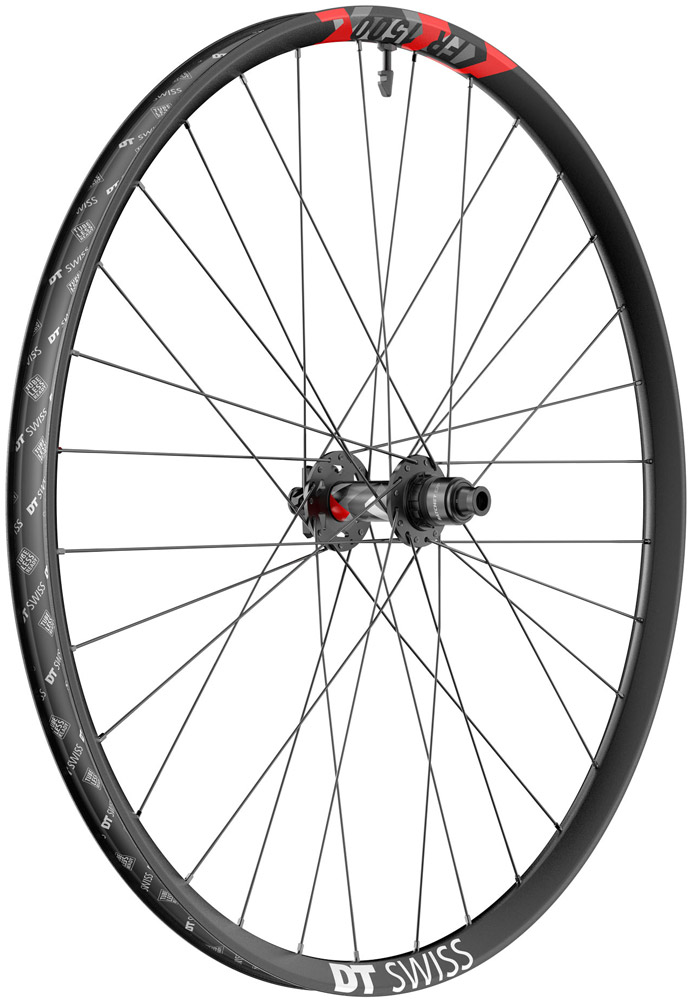

DT Swiss FR 1500 CLASSIC 29 30mm 6-Bolt Boost Rear Wheel

Turn the excited anticipation of new lines into a feeling of liberation with the new DT Swiss FR 1500 CLASSIC. These confidence-inspiring wheels feature a new rim profile that makes them lighter while improving their shock resistance and puncture resistance. To further reduce weight, the number of spokes on the front wheel has been reduced from 32 to 28, which increases responsiveness when changing direction. And all this built around a hub that already has several World Cup wins to its credit: the 240.

---

Product features - DT Swiss FR 1500 CLASSIC

• Use: Freeride/Downhill
• Model: FR 1500 CLASSIC
• Wheel size: 29"
• Rim diameter: 622 mm
• Rim joint: Welded
• Tire interface: Hooked / Crotchet tubeless TC
• Tubeless ready: ?
• Inner width: 30 mm
• Outer width: 35 mm
• Rim height: 21 mm
• Freehub body: Sram XD (mounted)
• Hub Type: 240
• Freehub system: Ratchet EXP 36
• Spokes: DT competition®
• Nipples: DT Pro Lock^® Squorx ProHead alu
• Holes: 32
• Spoke pattern: 3-cross (1:1)
• Valve hole: Presta / SV Ø 6.5 mm
• Brake interface: Disc IS (6-bolt)
• Recommended system weight max: 140 kg (body weight + bike + equipment)
• ASTM Classification: 5

Axle System /Built-In Dimension (choose variant)

• 12 x 148 mm Boost
• 12 x 157 mm

Material

• Rim: Aluminium
• Hub: Aluminum
• Spoke: Stainless steel
• Nipples: Aluminum
• Freehub body: Aluminium

Weight (manufacturer information)

• 12 x 148 mm - 1068 g
• 12 x 157 mm - 1073 g

---

Scope of delivery

• DT Swiss FR 1500 CLASSIC 29" 30 mm 6-bolt Boost Rear Wheel Sram XD
• Shimano HG freehub kit
• Tubeless tape 32 mm
• Tubeless valve 18-25 mm

---

Technologies

RATCHET EXP
Ratchet EXP is the lightest freewheel system from DT Swiss and is therefore used in DT Swiss products for the highest requirements. It is used in the 180 and 240 hubs.

PRO LOCK TECHNOLOGY
The Pro Lock process involves injecting a two-component adhesive into the nipple thread, which allows for the construction of extremely durable wheels. Once the nipples are screwed in, the adhesive is activated, fully curing at room temperature after approximately 6 - 7 hours. Multiple re-centering is possible without any problems, although the adhesive strength decreases slightly with each re-centering.

---

DT Swiss Support for Conversion

The support site offers an overview and can help you to find the right conversion kit to convert your hub to fit a new axle measurement or for a new group set.

? DT Swiss Conversion Charts
