Bosch Smart System 1-Arm Display Holder Kit – 31.8mm
This genuine Bosch retrofit kit allows a compatible display or SmartphoneGrip to be fitted to an e-bike equipped with Bosch’s Smart System. The one-arm bracket is designed for handlebars with a 31.8mm clamping diameter.
The kit includes the one-arm bracket, a display holder with rear cable outlet and a 300mm display cable, providing the main components required for a neat and secure installation.
Compatible Bosch Devices
The holder is designed for compatible Bosch Smart System devices, including:
- Bosch Kiox 300
- Bosch Kiox 500
- Bosch SmartphoneGrip
31.8mm One-Arm Bracket
The single-arm design positions the display centrally and keeps the cockpit organised. It clamps onto a standard 31.8mm handlebar section, so the handlebar diameter and available mounting space should be checked before ordering.
Rear Cable Outlet
The supplied display holder features a rear cable outlet for tidy cable routing. A 300mm Bosch display cable is included for connection to a compatible Smart System installation.
Important Installation Note
When retrofitting a display using a Y-cable installation, Bosch blind plug EB11900002 should be ordered separately to close the unused display port on the mount. The blind plug is not included with this kit.
Features
- Genuine Bosch eBike Systems retrofit kit
- Compatible with Bosch’s Smart System
- Suitable for Kiox 300, Kiox 500 and SmartphoneGrip
- One-arm display bracket
- Designed for a 31.8mm handlebar diameter
- Display holder with rear cable outlet
- Includes a 300mm Bosch display cable
- Provides a clean and secure cockpit installation
- Installation instructions included

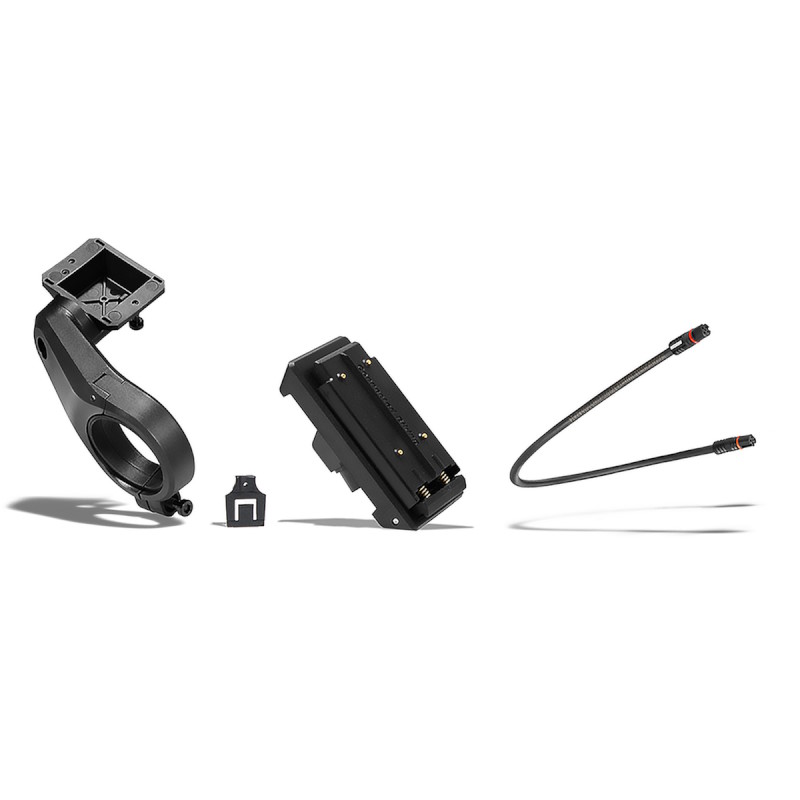

Included Components
- One-arm bracket, 31.8mm: BDS3620 / EB13100005
- Display holder with rear cable outlet: BDS3210 / EB1310000A
- Display cable, 300mm: BCH3611_300 / EB1212000A
- Documentation: Operating and installation instructions
Specifications
- Brand: Bosch eBike Systems
- System: Bosch Smart System
- Mounting type: One-arm handlebar bracket
- Handlebar diameter: 31.8mm
- Cable length: 300mm
- Cable outlet: Rear
- Manufacturer designation: BDSYYYY
Check the e-bike system, handlebar diameter, display compatibility and required cable routing before ordering. Installation by an authorised Bosch eBike dealer is recommended.
