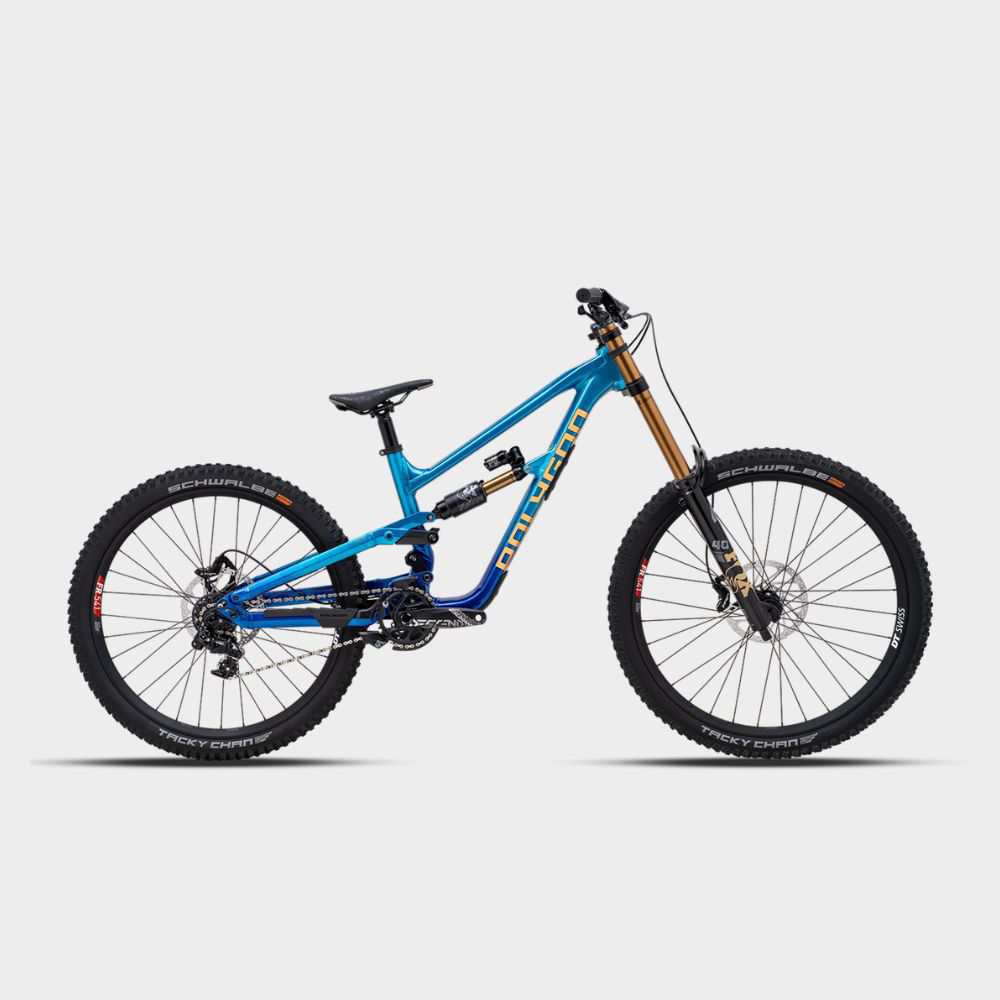

Polygon Collosus DH9
The Polygon Collosus DH9 marks the return of Polygon to serious downhill racing. Developed for high-speed descending, demanding race tracks and bike-park riding, it combines a durable ALX alloy frame with premium suspension and race-proven components.
The frame delivers 200mm of rear-wheel travel and uses Polygon's advanced suspension design to provide excellent traction, controlled braking performance and stability through rough terrain. Two flip-chip systems provide four geometry configurations, allowing riders to adjust the bottom-bracket position and wheel setup to suit their riding style.
Mixed-Wheel Downhill Setup
The standard mixed-wheel configuration combines a 29-inch front wheel with a 27.5-inch rear wheel. The larger front wheel improves control and rollover performance, while the smaller rear wheel provides greater agility and clearance on steep terrain. The frame can also be configured with a full 29-inch wheel setup.
Fox Factory Suspension
At the front, the Fox 40 Factory fork provides 203mm of travel and features a Kashima-coated finish with GRIP 2 damping. Separate high-speed and low-speed compression and rebound adjustments allow the suspension to be precisely tuned.
The Fox Float X2 Factory rear shock provides controlled performance, excellent small-bump sensitivity and support during hard landings and high-speed impacts.
Race-Ready Components
The SRAM X01 DH 7-speed drivetrain provides fast and precise shifting with ratios designed specifically for downhill racing. Powerful TRP DH-R EVO hydraulic disc brakes and large 203mm rotors deliver dependable stopping power on long and demanding descents.
DT Swiss FR 541 rims are paired with premium DT Swiss 240 hubs for a strong, responsive and dependable wheelset. Schwalbe Tacky Chan Addix Soft tyres provide high levels of grip and predictable handling on technical downhill terrain.
Key Features
- ALX alloy downhill frame
- 200mm rear-wheel travel
- Fox 40 Factory Kashima fork with 203mm travel
- Fox Float X2 Factory Kashima rear shock
- Adjustable geometry with four possible configurations
- 29-inch front and 27.5-inch rear mixed-wheel setup
- Compatible with a full 29-inch wheel setup
- SRAM X01 DH 7-speed drivetrain
- TRP DH-R EVO hydraulic disc brakes
- 203mm front and rear brake rotors
- DT Swiss FR 541 rims
- DT Swiss 240 hubs
- Schwalbe Tacky Chan Addix Soft tyres
- Race Face Atlas cockpit
- SRAM UDH compatible frame
Specification
- Frame: ALX alloy downhill frame, 200mm travel
- Fork: Fox 40 Factory Series Kashima, air spring, 203mm travel, GRIP 2
- Rear shock: Fox Float X2 Factory Series Kashima, 250 x 75mm
- Shifter: SRAM X01 DH, 7-speed
- Rear derailleur: SRAM X01 DH
- Crankset: SRAM Descendant DH, 34T
- Cassette: SRAM PG720, 11-25T
- Bottom bracket: SRAM DUB BSA 83mm
- Chain: KMC X11
- Brakes: TRP DH-R EVO hydraulic disc
- Rotors: TRP RS01E 203mm, 6-bolt
- Front rim: DT Swiss FR 541, 29-inch, 32-hole
- Rear rim: DT Swiss FR 541, 27.5-inch, 32-hole
- Front hub: DT Swiss 240, 20 x 110mm
- Rear hub: DT Swiss 240, 12 x 157mm
- Front tyre: Schwalbe Tacky Chan Addix Soft, 29 x 2.4 inches
- Rear tyre: Schwalbe Tacky Chan Addix Soft, 27.5 x 2.4 inches
- Handlebar: Race Face Atlas 35, 820mm wide
- Stem: Race Face Atlas 35 Direct Mount, 50mm
- Saddle: Linc Xtent
- Seatpost: Polygon Expert, 34.9 x 320mm
- Colour: Blue Sapphire with Kashima Gloss decals
Recommended Rider Height
- Small: 155-165cm
- Medium: 165-175cm
- Large: 175-185cm
- Extra Large: 185-195cm
Component specifications may be changed by the manufacturer without prior notice.
