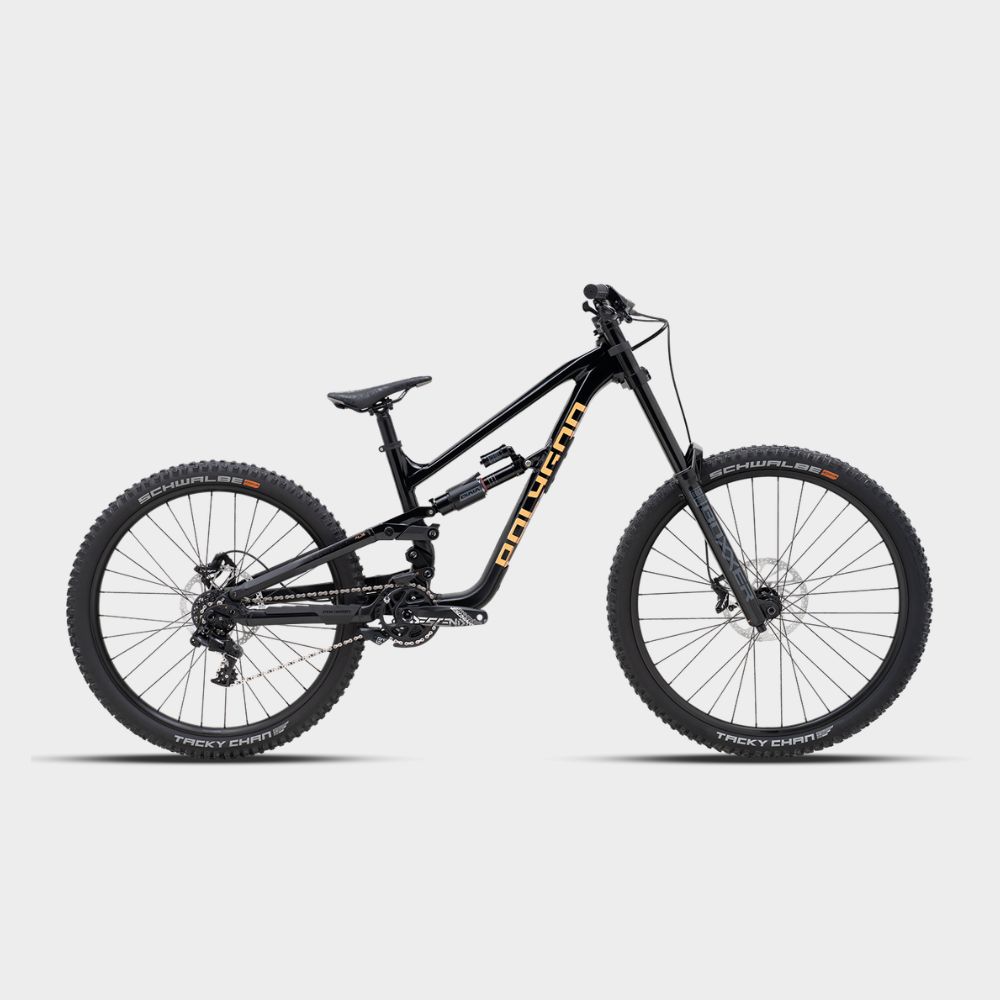

Polygon Collosus DH7 Downhill Mountain Bike
The Polygon Collosus DH7 is a race-developed downhill mountain bike built for high-speed descending, demanding race tracks, bike parks and aggressive gravity riding. It combines a durable ALX alloy frame with 200mm of suspension travel, adjustable geometry and a mixed-wheel configuration.
Developed from the proven Collosus N enduro platform and tested by Polygon Factory Racing, the Collosus DH7 provides the traction, stability and impact control required for modern downhill riding.
IFS 6-Bar Suspension
Polygon's IFS suspension uses an innovative 6-bar linkage developed through downhill racing. The system manages braking and pedalling forces independently while controlling the leverage ratio and rear-wheel axle path.
This design provides excellent small-bump sensitivity, dependable traction and controlled suspension behaviour under braking. Progressive support helps the bike remain stable at high speed and controlled during large impacts and hard landings.
200mm RockShox Suspension
The RockShox BoXXer Base fork provides 200mm of travel using an air spring and Charger 3 damper. Compression and rebound adjustment allow the rider to tune the fork for different tracks, riding styles and rider weights.
A RockShox Vivid Base rear shock controls the bike's 200mm of rear-wheel travel, providing traction over rough terrain and support through high-speed impacts.
Mixed-Wheel Downhill Setup
The standard mixed-wheel configuration combines a 29-inch front wheel with a 27.5-inch rear wheel. The larger front wheel improves rollover performance and stability, while the smaller rear wheel provides greater agility and clearance on steep terrain.
The frame is also compatible with a 29-inch rear wheel, allowing riders to create a full 29-inch setup for maximum stability and rollover performance.
Adjustable Geometry
Two flip-chip systems allow the Collosus DH7 to be configured in four different geometry positions. Riders can adjust the bottom-bracket height and rear-wheel setup to match the track and their preferred handling characteristics.
The 1.5-inch head tube is also compatible with aftermarket reach or angle-adjusting headset cups, providing further options for personalizing the bike's geometry.
SRAM GX DH Drivetrain
The SRAM GX DH 7-speed drivetrain is designed specifically for downhill riding. Its compact 11-25T cassette provides closely spaced gears for accelerating and maintaining speed on downhill tracks.
A SRAM Descendant DH crankset with a 34T chainring provides the strength and stiffness required for demanding gravity riding.
TRP DH-R EVO Brakes
TRP DH-R EVO hydraulic disc brakes provide powerful and controlled braking for steep and technical descents. Large 203mm front and rear rotors help manage heat and maintain consistent braking performance during long downhill runs.
Schwalbe Tacky Chan Tyres
Schwalbe Tacky Chan Addix Soft tyres provide dependable grip and predictable control on loose, steep and technical terrain. The bike uses a 29x2.4-inch front tyre and a 27.5x2.4-inch rear tyre.
Key Features
- ALX alloy downhill frame
- 200mm of rear-wheel travel
- RockShox BoXXer Base air fork with 200mm travel
- RockShox Charger 3 damper
- RockShox Vivid Base rear shock
- Polygon IFS 6-bar suspension system
- Adjustable geometry with four configurations
- 29-inch front and 27.5-inch rear mixed-wheel setup
- Compatible with a full 29-inch wheel setup
- SRAM GX DH 7-speed drivetrain
- SRAM Descendant DH crankset
- TRP DH-R EVO hydraulic disc brakes
- 203mm front and rear brake rotors
- Schwalbe Tacky Chan Addix Soft tyres
- Race Face Atlas handlebar and direct-mount stem
- SRAM UDH compatible frame
Specification
- Frame: ALX alloy downhill frame, 200mm travel
- Fork: RockShox BoXXer Base, air spring, 200mm travel, Charger 3
- Rear shock: RockShox Vivid Base, 250x75mm
- Shifter: SRAM GX DH, 7-speed trigger
- Rear derailleur: SRAM GX DH
- Crankset: SRAM Descendant DH, 34T
- Cassette: SRAM PG720, 11-25T
- Bottom bracket: SRAM DUB BSA 83mm
- Chain: KMC X11
- Brake levers: TRP DH-R EVO
- Brake calipers: TRP DH-R EVO hydraulic disc
- Brake rotors: TRP RS01E 203mm, 6-bolt
- Front wheel: 29-inch alloy rim, 32-hole
- Rear wheel: 27.5-inch alloy rim, 32-hole
- Front hub: Novatec, 20x110mm thru axle
- Rear hub: Novatec, 12x157mm thru axle
- Front tyre: Schwalbe Tacky Chan Addix Soft, 29x2.4 inches
- Rear tyre: Schwalbe Tacky Chan Addix Soft, 27.5x2.4 inches
- Handlebar: Race Face Atlas 35, 820mm wide
- Stem: Race Face Atlas 35 Direct Mount, 50mm
- Seatpost: Polygon Expert, 34.9x320mm
- Saddle: Linc Xtent
- Pedals: Alloy flat pedals with replaceable pins
- Headset: FSA No.55/57-1
- Colour: Black Gold with Kashima Gloss decals
Recommended Rider Height
- Small: 155-165cm
- Medium: 165-175cm
- Large: 175-185cm
- Extra Large: 185-195cm
Frequently Asked Questions
What type of bike is the Polygon Collosus DH7?
The Polygon Collosus DH7 is a full-suspension downhill mountain bike designed for downhill racing, bike parks, technical descents and gravity riding.
How much suspension travel does the Collosus DH7 have?
It has a RockShox BoXXer fork with 200mm of front travel and an ALX downhill frame with 200mm of rear-wheel travel.
What is the IFS suspension system?
Polygon's IFS system uses a 6-bar linkage to improve traction, braking control, small-bump sensitivity and suspension support during high-speed impacts.
What wheel sizes does the Collosus DH7 use?
The standard setup uses a 29-inch front wheel and a 27.5-inch rear wheel. This is commonly known as a mixed-wheel or mullet setup.
Can the Collosus DH7 use two 29-inch wheels?
Yes. The frame can be converted to a full 29-inch wheel setup using its adjustable rear geometry.
Does the Collosus DH7 have adjustable geometry?
Yes. Two flip-chip systems provide four geometry configurations for adjusting the bottom-bracket position and wheel setup.
What drivetrain does the Collosus DH7 use?
It uses a downhill-specific SRAM GX DH 7-speed drivetrain with a SRAM PG720 11-25T cassette.
What brakes are fitted to the Collosus DH7?
It is fitted with powerful TRP DH-R EVO hydraulic disc brakes and large 203mm rotors at the front and rear.
What is the difference between the Collosus DH7 and DH9?
Both models use the same 200mm ALX downhill frame and adjustable mixed-wheel platform. The DH7 uses RockShox suspension, a SRAM GX DH drivetrain and alloy wheels, while the higher-specification DH9 uses Fox Factory Kashima suspension, a SRAM X01 DH drivetrain and DT Swiss wheels with DT Swiss 240 hubs.
Component specifications may be changed by the manufacturer without prior notice.
