MONDRAKER SUMMUM CARBON R 29

Sorry - this product is no longer available

Manufacturer: Mondraker

SKU: 010.22098SPE

GTIN: 010.22098SPE

Be the first to review this product

Price: €3899.00 incl tax

Old Price: €6699.00 incl tax

New Old Stock Summum Carbon R 29 (2022) — Size L — on display now at Wheel Wizard Malta. Full carbon frame, Fox Factory suspension and SRAM Code brakes deliver elite downhill performance for bike parks and World Cup terrain. Brand new, never ridden, and ready to go.

Size Size

Availability: Out of stock

Qty:

+ -

Description

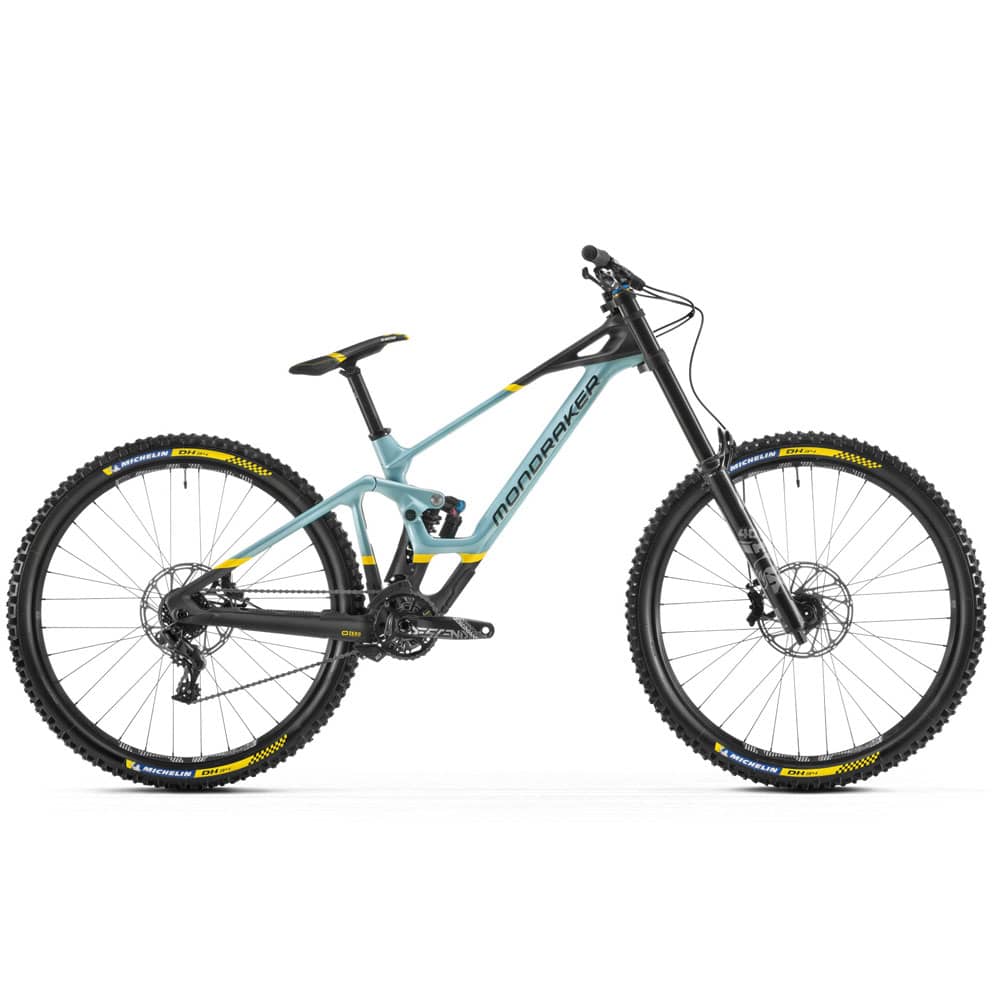

Mondraker Summum Carbon R 29 2022 – Size L (New Old Stock)

The Mondraker Summum Carbon R 29 2022 is a pure-bred downhill race bike built around Mondraker’s STEALTH AIR carbon frame, ZERO Suspension System and Forward Geometry. With 200mm of rear travel and a 203mm Fox 40 Factory fork, it is engineered for modern World Cup tracks, high-speed bike park riding and extreme freeride terrain.

This unit is New Old Stock (NOS) — brand new, unused , stored since original production. This makes it a rare opportunity to secure premium carbon downhill performance at an exceptional value.

Highlights

STEALTH AIR full carbon chassis with carbon monoblock upper link
200mm ZERO Suspension System for maximum traction and braking control
Fox 40 Factory GRIP2 fork + Fox DHX2 Performance Elite coil shock
SRAM GX DH 7-speed downhill drivetrain
SRAM Code R 4-piston brakes with 203mm CenterLine rotors
29” e*thirteen LG1 Plus DH wheels with Michelin DH34 tyres
Size: L
Condition: Brand new boxed (NOS)

Specifications

Product	Mondraker Summum Carbon R Bike
Riding Type	Downhill, Freeride / Bike Park
Rider	Unisex
Size Available	LG
Wheel Size	29"
Frame Material	Carbon Fiber
Frame Material Details	Stealth Air Carbon front and rear triangles, Carbon Monoblock upper link, molded chainstay and downtube protection
Rear Travel	200mm
Rear Shock	FOX DHX2 Performance Elite, low-speed compression adjust, low-speed rebound adjust, spring preload, trunnion mount, 225mm x 70mm Spring rates: 400lbs (SM), 450lbs (MD), 500lbs (LG/XL)
Fork	FOX FLOAT 40 Factory, GRIP2 damper, EVOL, high/low-speed compression adjust, high/low-speed rebound adjust, 56mm offset
Fork Travel	203mm
Head Tube Diameter	Straight, 56mm
Headset	ONOFF Mercurium 1.5 ZS, ACB sealed bearings
Handlebar	ONOFF Sulfur 1.0, double butted 6061 alloy, 800mm width, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp
Stem	ONOFF Krypton DH, 6061 alloy, CNC Integrated FG, 25-30mm adjustable length, 31.8mm clamp
Grips	ONOFF Diamond, 135mm length, single lock-on
Brakes	SRAM Code R, 4-piston, SRAM CenterLine 203mm 6-bolt one-piece rotors, steel-backed metal sintered pads
Brake Levers	SRAM Code R, tool-free reach adjust
Drivetrain	1x
Shifters	SRAM GX DH, 7-speed, X-ACTUATION
Front Derailleur	None
Rear Derailleur	SRAM GX DH, 7-speed, X-ACTUATION, medium cage
ISCG Tabs	ISCG05
Chainguide	e*thirteen Vario compact upper slider, alloy backplate; lower pulley guide; direct mount bashguard
Cranks	Truvativ Descendant DH DUB, 165mm length
Chainrings	Truvativ Descendant DH, X-SYNC, direct mount, 34T steel
Bottom Bracket	SRAM DUB, sealed bearings, 83mm English/BSA threaded
Pedals	None
Chain	SRAM PC-1110, 11-speed, with PowerLock
Cassette	SRAM PG-720, 7-speed, 11-25 tooth
Rims	e*thirteen LG1 Plus DH, 30mm internal width, 6069 welded aluminum, tubeless ready, 32 hole
Hubs	e*thirteen, fully-machined aluminum, triple-sealed, 110x20mm Boost front, 157x12mm SuperBoost rear, 6° engagement, HG driver
Spokes	e*thirteen Hive, triple-butted alloy, alloy nipples with washers
Tires	Michelin DH34, Magi-X DH compound, double-reinforced DH shield casing, wire bead, tubeless ready, 29" x 2.4"
Saddle	SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Seatpost	SDG Micro I-Beam SP-751, alloy, micro-adjust, 300mm length
Seatpost Diameter	31.6mm
Seatpost Clamp	Single bolt
Rear Dropout / Hub Dimensions	157x12mm SuperBoost

For geometry charts, kinematics and Mondraker technology, visit mondraker.com.
