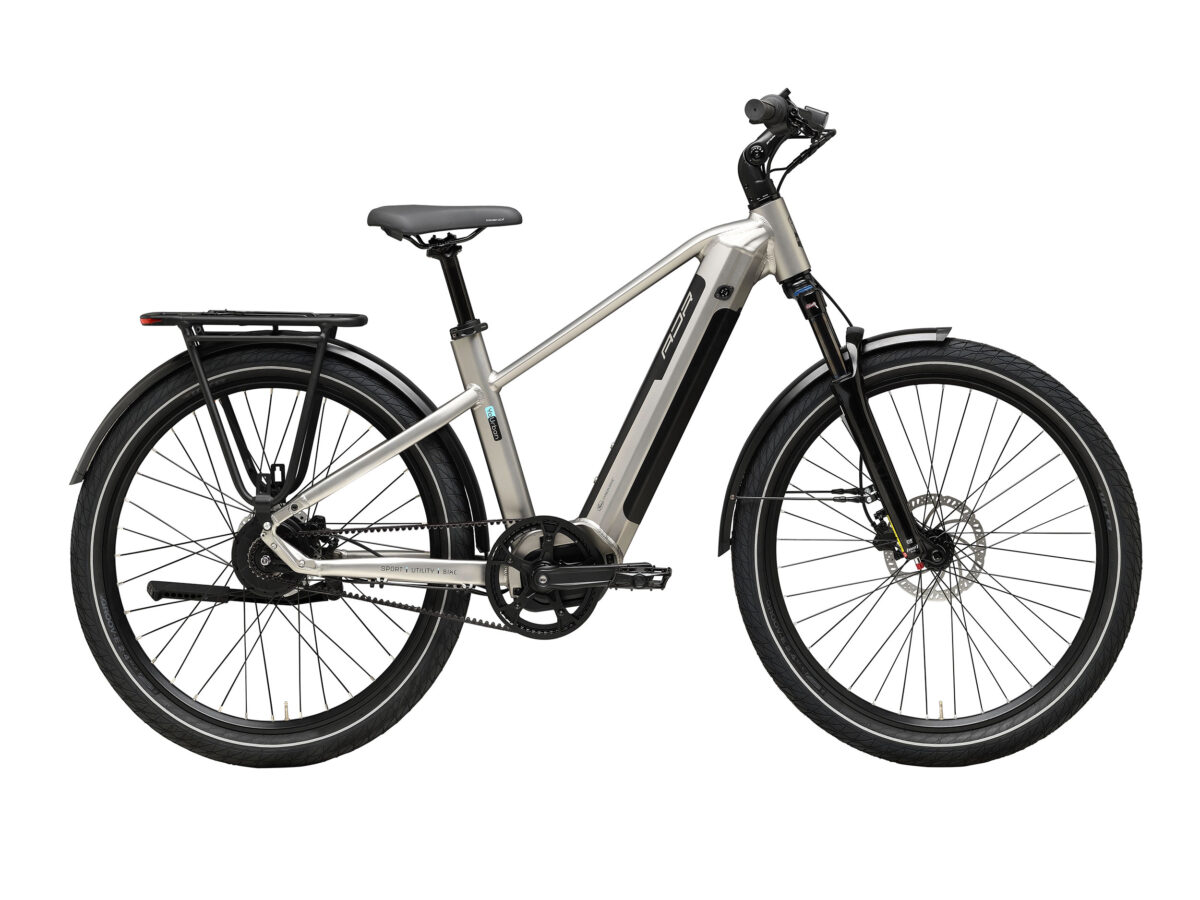

Cicli Adriatica Yo-Urban Man Electric SUV Bike
The Cicli Adriatica Yo-Urban Man is a premium electric SUV bike designed for commuting, touring and recreational riding over a variety of surfaces. It combines a powerful OLI Sport mid-drive motor with an Enviolo stepless transmission, Gates Carbon Drive belt and large 630Wh battery.
A 100mm Suntour suspension fork, wide WTB E-Groove tyres and hydraulic disc brakes provide comfort and control on city streets, country roads and light off-road routes.
Powerful OLI Sport Mid-Drive Motor
The Yo-Urban Man is powered by an OLI Sport 36V 250W central motor producing approximately 85Nm of torque. Its strong low-speed support makes the bike particularly capable when climbing hills, starting with additional weight or riding over demanding terrain.
A torque sensor measures the rider's pedalling effort and adjusts the assistance accordingly. This provides smooth, responsive and natural-feeling motor support.
Large 630Wh Battery
The integrated 36V 17.5Ah battery provides a total capacity of 630Wh. This generous capacity is well suited to longer commutes, touring and recreational rides.
Actual riding range depends on assistance level, rider weight, terrain, wind, temperature, tyre pressure and riding style.
Enviolo Stepless Transmission
The Enviolo Trekking hub provides continuously variable manual gearing. Instead of selecting between fixed gears, the rider can gradually adjust the transmission ratio to find the most comfortable pedalling cadence.
The system changes ratio smoothly without the normal steps or sudden gear changes of a traditional derailleur. It also allows the rider to adjust the ratio while stationary, which is useful when stopping unexpectedly on an incline or in traffic.
Gates Carbon Belt Drive
The Gates Carbon Drive CDX belt replaces a conventional metal bicycle chain. It provides quiet and smooth operation without the regular lubrication required by a chain.
The carbon-reinforced belt is clean, durable and resistant to rust. Combined with the enclosed Enviolo hub, it creates a dependable and low-maintenance transmission for everyday riding.
100mm Suntour Suspension Fork
The Suntour XEM32 ATB suspension fork provides 100mm of travel to absorb impacts from potholes, rough roads and uneven tracks. This improves comfort and helps the front wheel maintain contact with the ground.
Wide WTB E-Groove Tyres
WTB E-Groove 27.5x2.4-inch tyres provide a large contact area for increased grip, stability and comfort. They are designed for the additional weight and speed of an electric bike and perform well across paved roads and mixed surfaces.
Tektro Hydraulic Disc Brakes
Tektro HD-M290 hydraulic disc brakes provide strong and predictable stopping power with reduced hand effort. They offer dependable control in dry and wet riding conditions.
Comfortable and Adjustable Riding Position
An adjustable alloy stem allows the handlebar position to be adapted to suit the rider. The Selle Royal Essence Moderate saddle provides support for commuting, touring and longer leisure rides.
Key Features
- 6061 aluminium electric SUV frame
- OLI Sport 36V 250W mid-drive motor
- Approximately 85Nm of motor torque
- 36V 17.5Ah battery
- Large 630Wh battery capacity
- Enviolo Trekking stepless manual transmission
- Gates Carbon Drive CDX belt
- Low-maintenance enclosed drivetrain
- Suntour XEM32 ATB suspension fork
- 100mm front suspension travel
- Tektro hydraulic disc brakes
- WTB E-Groove 27.5x2.4-inch tyres
- Adjustable handlebar stem
- Selle Royal comfort saddle
Specification
- Frame: 6061 aluminium, 27.5-inch
- Fork: Suntour XEM32 ATB, 100mm travel
- Motor: OLI Sport central motor, 36V 250W
- Maximum motor torque: Approximately 85Nm
- Battery: 36V 17.5Ah
- Battery capacity: 630Wh
- Transmission: Enviolo Trekking manual stepless hub
- Shifter: Enviolo Pure manual control
- Front pulley: Gates Carbon Drive CDX, 55T
- Rear sprocket: Gates Carbon Drive, 22T
- Drive system: Gates carbon belt
- Brakes: Tektro HD-M290 hydraulic disc
- Wheel size: 27.5-inch
- Wheels: TRK alloy
- Tyres: WTB E-Groove 27.5x2.4 inches
- Handlebar: TRK alloy
- Stem: TRK alloy adjustable stem with internal cable routing
- Seatpost: Alloy
- Saddle: Selle Royal Essence Moderate
- Pedals: TRK alloy
- Frame size: 43.5cm
- Weight: Approximately 24kg
Frequently Asked Questions
What type of electric bike is the Adriatica Yo-Urban Man?
The Yo-Urban Man is an electric SUV and trekking bike designed for commuting, touring, leisure riding and mixed surfaces.
What motor does the Yo-Urban Man use?
It uses an OLI Sport 36V 250W central mid-drive motor producing approximately 85Nm of torque.
Is the Yo-Urban Man suitable for hills?
Yes. The high-torque mid-drive motor makes it suitable for steep hills and demanding routes. Adjusting the Enviolo transmission to an easier ratio improves climbing efficiency.
What is an Enviolo stepless transmission?
An Enviolo transmission does not use a fixed number of gears. The rider can gradually adjust the ratio until the desired pedalling effort and cadence are achieved.
Can the Enviolo gearing be adjusted while stationary?
Yes. The rider can make a significant ratio adjustment while stopped, making it easier to restart after stopping in traffic or on an incline.
What are the advantages of a Gates belt drive?
The Gates belt is quiet, clean and resistant to rust. It does not require regular chain lubrication and normally needs less routine maintenance than a conventional chain and derailleur system.
What is the battery capacity?
The bike has a 36V 17.5Ah battery providing a total capacity of 630Wh.
What range can I expect from the 630Wh battery?
Range varies according to assistance level, rider weight, hills, wind, temperature and tyre pressure. Lower assistance levels and correct tyre pressure will normally increase range.
Does the Yo-Urban Man have hydraulic disc brakes?
Yes. It is fitted with Tektro HD-M290 hydraulic disc brakes for strong and controlled stopping performance.
Is it suitable for off-road riding?
The 100mm suspension fork and wide 2.4-inch tyres make it suitable for gravel roads, country paths and light off-road routes. It is not intended to replace a dedicated full-suspension electric mountain bike on technical trails.
Battery range and performance vary according to riding conditions. Component specifications may be changed by the manufacturer without prior notice.
