Orbea Muga 30
Expand what moves you.

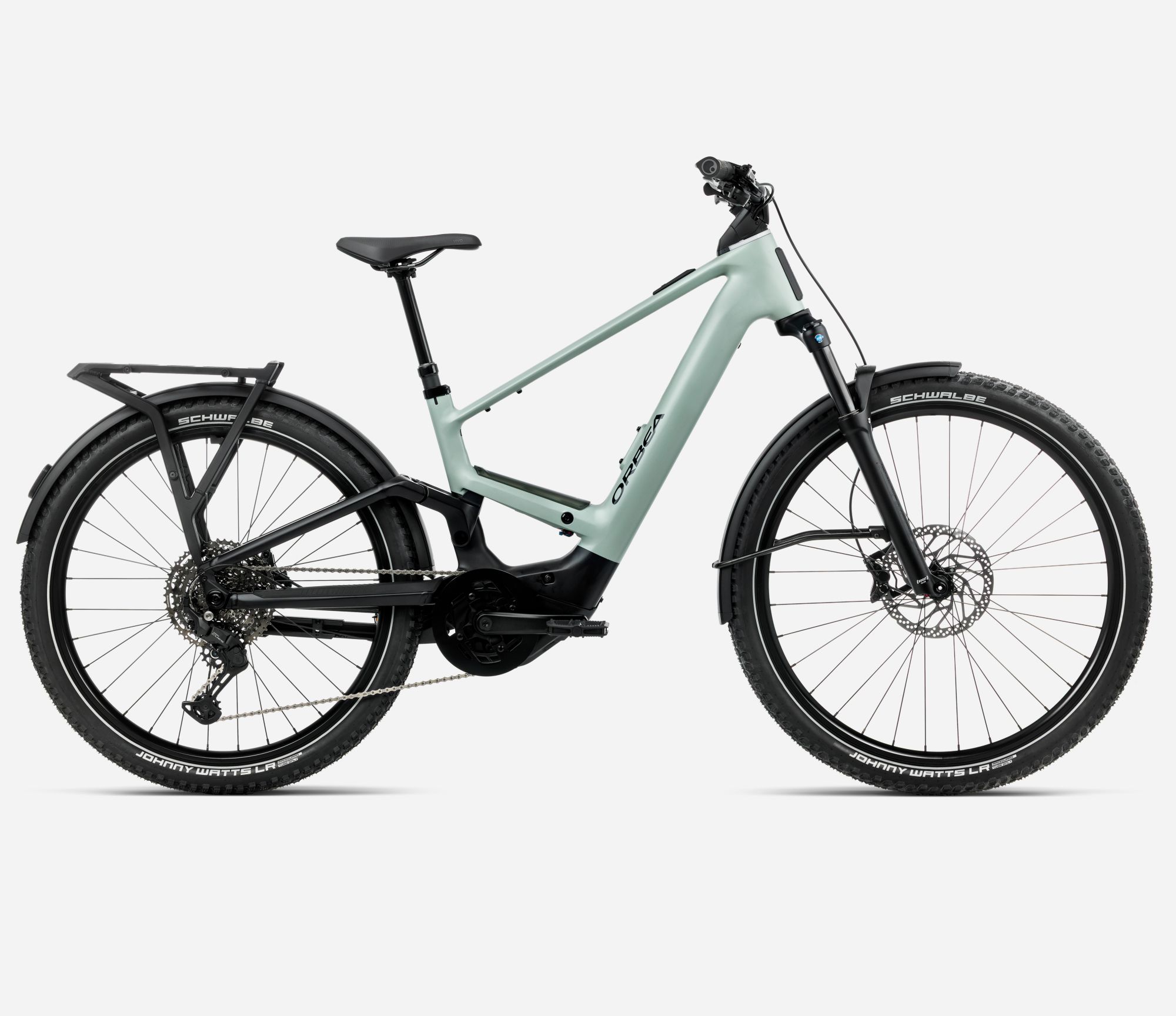

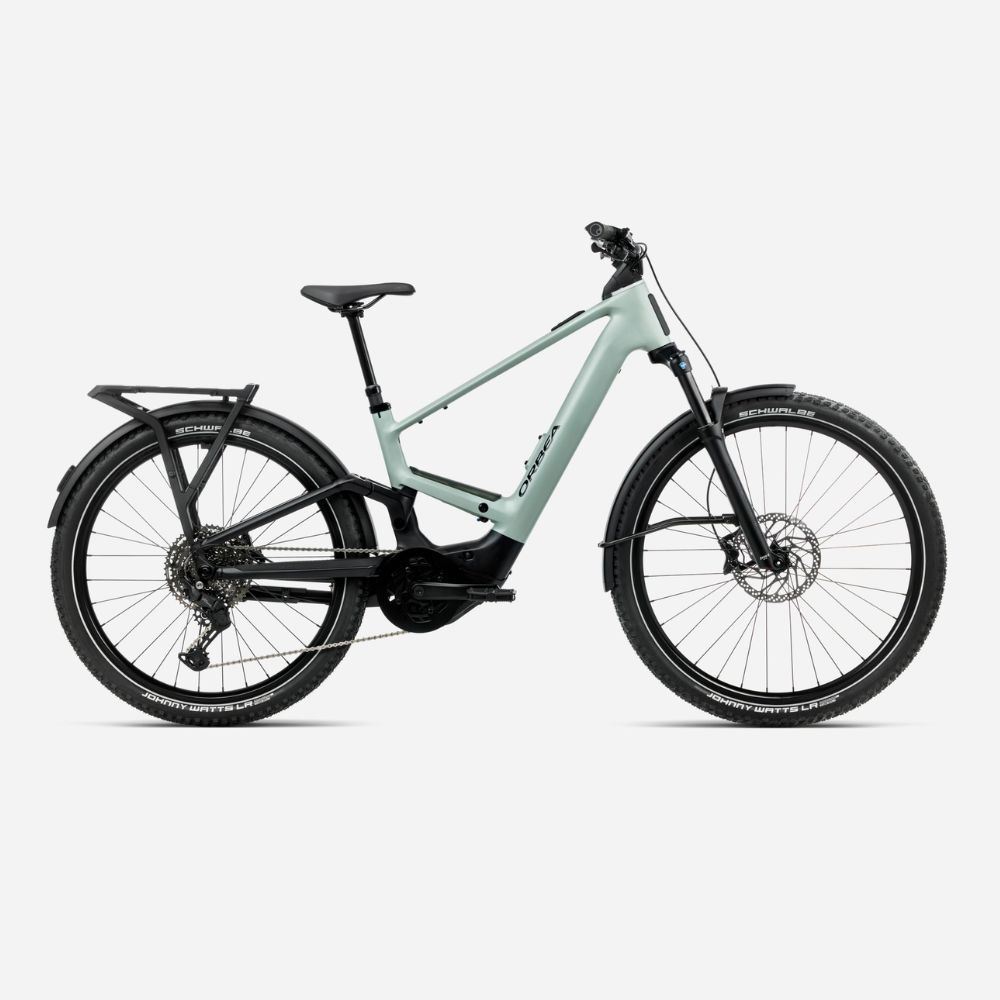

The Orbea Muga 30 is a powerful and highly versatile full-suspension electric bike designed for commuting, exploring and everyday adventure. Comfortable on city streets and capable on rougher trails, the Muga combines confident handling with practical equipment for all-day riding.
Its powerful Bosch Performance Line CX motor delivers smooth and responsive assistance, while the integrated Bosch PowerTube 600Wh battery provides the range needed for longer rides. A 750Wh battery upgrade may also be available for riders who want even greater range.
The hydroformed aluminium frame is paired with a 120mm SR Suntour air fork and a custom-tuned Fox Float Performance rear shock. This full-suspension setup absorbs bumps and uneven surfaces, giving the Muga excellent comfort, traction and control.
Shimano CUES 11-speed gearing provides a wide and durable gear range, while powerful four-piston Shimano hydraulic disc brakes deliver dependable stopping performance. Practical features including integrated lights, mudguards, a rear carrier, kickstand and dropper seatpost make the Muga ready for daily use straight from the box.
Key Features
Bosch CX Motor Powerful and responsive electric assistance.
600Wh Battery Integrated Bosch PowerTube battery for extended range.
Full Suspension 120mm front travel with a Fox rear shock.
Fully Equipped Lights, mudguards, carrier and kickstand included.
Technical Specifications
| Frame & Suspension |
|---|
| Frame | Orbea Muga Hydroformed Alloy 6061, Boost 148, carrier and belt-drive compatible |
| Fork | SR Suntour Mobie34 Air, 120mm travel, Q15x110 |
| Rear Shock | Fox Float Performance Trunnion, 2-position, custom tune |
| Electric System |
|---|
| Motor | Bosch Performance Line CX |
| Battery | Bosch PowerTube 600Wh |
| Controller | Bosch System Controller with Mini Remote |
| Charger | Bosch 4A Charger |
| Drivetrain & Brakes |
|---|
| Rear Derailleur | Shimano CUES U6000 GS Shadow |
| Shifter | Shimano CUES SL-U6000 |
| Cassette | Shimano CS-LG400, 11–50T, 11-speed |
| Chain | KMC eGlide |
| Brakes | Shimano MT420 four-piston hydraulic disc brakes |
| Wheels & Components |
|---|
| Wheels | Alloy, 26c, 32-hole |
| Tyres | Schwalbe Johnny Watts LR with reflective sidewalls |
| Seatpost | OC Mountain Control MC22 dropper post with handlebar remote |
| Saddle | Selle Royal Vivo Ergo |
| Equipment |
|---|
| Front Light | STARSTREAM PRO with integrated position light |
| Rear Light | Supernova TL3 Z |
| Rear Carrier | Orbea RR-02 Alloy, MIK HD and Ortlieb QL3.1 compatible, maximum load 30kg |
| Mudguards | Curana Apollo Orbit 70mm |
| Additional Equipment | Integrated kickstand, pedals and smartphone mount |
Ideal for: commuting, touring, leisure riding and exploring mixed terrain in comfort.
Specifications are supplied by the manufacturer and may change without notice. Images are for illustration purposes; equipment and colour may vary according to the selected configuration.
